TPM01A
Thermometer with a movable scale

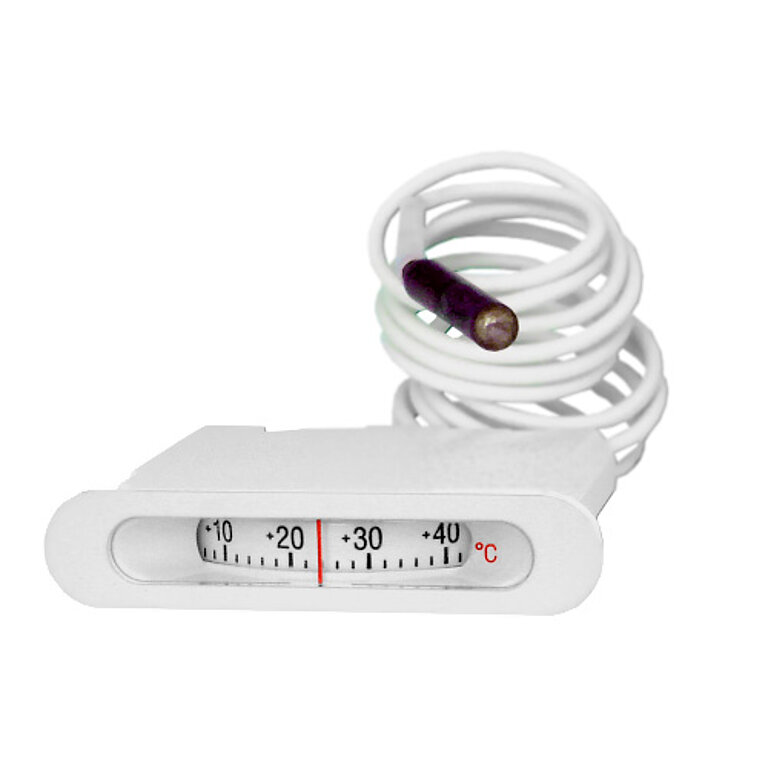

Dial thermometer for measuring the temperature of liquids, gases and solids. The temperature is measured by the measuring head at the end of the capillary tube.
[d] Pliki do pobrania
Dane techniczne
Measurement range: | -40 ° C ... + 40 ° C |
Scale: | 2 ° C |
Accuracy of measurement: | +/- 2% |
Capillary Length: | 1500mm |
Head dimensions: | length: 30mm, diameter: 6mm |
Capillary Material /Sheath: | copper /PVC sheath |
Housing temperature: | 50 ° C |
Installation in the opening with dimensions: | 62 x 12mm |
Housing dimensions: | W x H x D: 70 x 15 x 60mm |
Housing color: | white |
The measurement principle is based on the use of the phenomenon of expansion of a liquid placed in a capillary tube, which changes its volume under the influence of temperature changes and causes a deflection of the bellows with the temperature scale marked on the rotating dial of the thermometer.
- High operational reliability
- Remote reading thanks to the capillary
If you do not know which thermometer to choose, please read the article.
