LP-10
Wired floor heating control strip for 10 circuits
Power supply: 230VAC 50Hz
Number of independently controlled heating zones: 10
Assignable: up to 10 thermostats
[d] Pliki do pobrania
Dane techniczne
Power: | 230VAC 50Hz |
Built-in security: | Slow-blow glass tube fuse 10A, 5x20mm |
Number of independently controlled heating zones: | 10 |
Load capacity of 230V heads control outputs: | 30 W per zone up to 4 actuators |
Load capacity of the CH pump output 230V: | 200W |
Relay contacts load capacity: | 2A 230VAC, potential-free contacts (NO/COM/NC) |
Additional features: | Boiler and pump activation delay, adjustable from 1 to 5 minutes |
Work signaling: | Optical - diodes |
Installation: | Surface-mounted |
| Dimensions | WxHxD: 324x88x52mm |
Working conditions: | -10...60°C; 0...90%RH (non-condensing) |
Degree and protection class: | IP20/II |

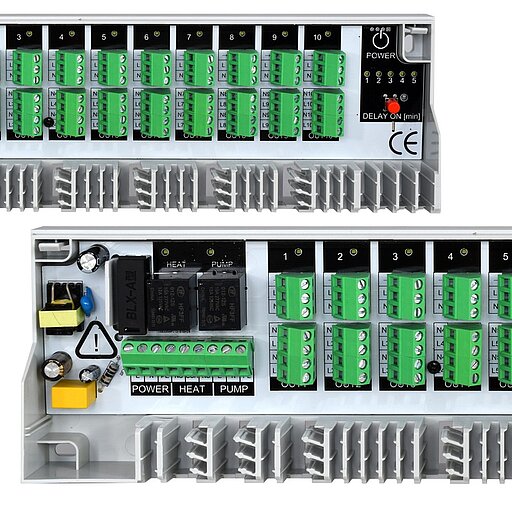

Wired floor heating control strip for 10 circuits
The LP10 strip allows you to control any valve actuator and start the boiler and the circulation pump. The power strip controlling floor heating actuators has a delay in switching on the boiler and pump relative to actuators from 1 to 5 minutes in order to minimize pressure jumps in the central heating system. The strip is designed for installation in installation cabinets, which allows you to organize the actuator cables.
The strip can handle up to 10 circuits and up to 10 room thermostats. For each circuit there is an indication of the output status, high-quality connectors guarantee reliable contact and comfortable connection of wires.
The terminal block has an adjustable delay for switching on the pump and boiler, as well as signaling the status of the outputs and the status of the delay.
